Amazon ECS 0.35.0

ECS Service

This module creates an Elastic Container Service (ECS) Service that you can use to run one or more related, long-running Docker containers, such as a web service. An ECS service can automatically deploy multiple instances of your Docker containers across an ECS cluster (see the ecs-cluster module), restart any failed Docker containers, route traffic across your containers using an optional Elastic Load Balancer (ELB), and optionally register the services to AWS Service Discovery Service.

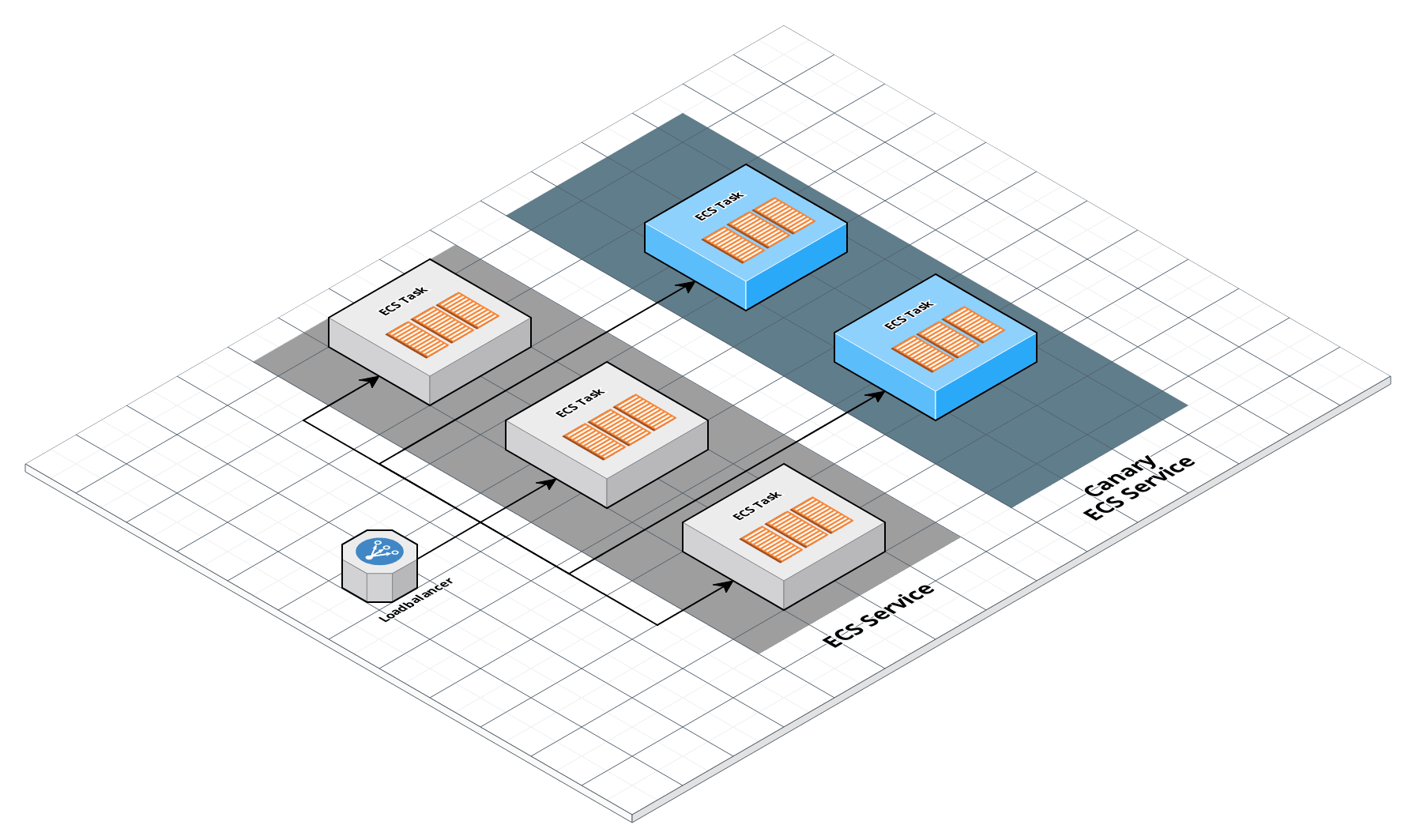

ECS Service architecture

Features

Deploy and manage one or more docker containers as a logical unit
Deploy on Fargate or EC2 instances
Auto scaling and auto healing containers
Canary deployments
Service discovery through AWS Service Discovery Service
ELB (CLB, ALB, and NLB) support
VPC support
Verified deployments using the ECS deployment checker binary

Learn

Note

This repo is a part of the Gruntwork Infrastructure as Code Library, a collection of reusable, battle-tested, production ready infrastructure code. If you’ve never used the Infrastructure as Code Library before, make sure to read How to use the Gruntwork Infrastructure as Code Library!

Core concepts

What is Amazon ECS?
Helpful vocabulary for ECS
What is Fargate?
What is an ECS Service?
What is ECS Service Discovery?
ECS Documentation: Amazon’s docs for ECS that cover core concepts such as the different cluster hosting options, scheduling properties, Docker, security, and monitoring.
A crash course on Docker & Packer: a series of training videos that teach you how to use docker, including a section on ECS.

Repo organization

modules: the main implementation code for this repo, broken down into multiple standalone, orthogonal submodules.
- modules/ecs-cluster: use this module to provision an ECS cluster with ECS container instances.
- modules/ecs-scripts: use the scripts in this module to configure private docker registries and register ECS container instances to ECS clusters.
- modules/ecs-service: use this module to deploy one or more docker containers as a ECS service, with options to use ELBs (CLB, ALB, or NLB), Service Discovery, or Fargate.
- modules/ecs-daemon-service: use this module to deploy one or more docker containers that run on a regular schedule.
- modules/ecs-deploy: use the scripts in this module to run one or more docker containers as a one time task on an ECS cluster.
- modules/ecs-deploy-check-binaries: use the python binary packages in this module to check ECS service deployments to ensure that they are active and healthy.
examples: This folder contains working examples of how to use the submodules.
test: Automated tests for the modules and examples.

Gruntwork analysis

EC2 vs Fargate launch types: A detailed comparison between the two available launch types for ECS, showing you the trade-offs between ECS container instances and Fargate.

Deploy

Non-production deployment (quick start for learning)

If you just want to try this repo out for experimenting and learning, check out the following resources:

examples folder: The examples folder contains sample code optimized for learning, experimenting, and testing (but not production usage).

Production deployment

If you want to deploy this repo in production, check out the following resources:

Production-ready sample code from the Reference Architecture:

ECS Cluster: examples for managing an ECS cluster with ECS container instances
app account configuration
base configuration
ECS Service with ALB: examples for managing ECS services load balanced by an ALB
app account configuration
base configuration

Manage

Day-to-day operations

Major changes

Sample Usage

Terraform
Terragrunt

main.tf

# ------------------------------------------------------------------------------------------------------
# DEPLOY GRUNTWORK'S ECS-SERVICE MODULE
# ------------------------------------------------------------------------------------------------------

module "ecs_service" {

  source = "git::git@github.com:gruntwork-io/terraform-aws-ecs.git//modules/ecs-service?ref=v0.35.0"

  # ----------------------------------------------------------------------------------------------------
  # REQUIRED VARIABLES
  # ----------------------------------------------------------------------------------------------------

  # How many copies of the Task to run across the cluster.
  desired_number_of_tasks = <INPUT REQUIRED>

  # The Amazon Resource Name (ARN) of the ECS Cluster where this service should run.
  ecs_cluster_arn = <INPUT REQUIRED>

  # The JSON text of the ECS Task Container Definitions. This portion of the ECS
  # Task Definition defines the Docker container(s) to be run along with all their
  # properties. It should adhere to the format described at https://goo.gl/ob5U3g.
  ecs_task_container_definitions = <INPUT REQUIRED>

  # The name of the service. This is used to namespace all resources created by this
  # module.
  service_name = <INPUT REQUIRED>

  # ----------------------------------------------------------------------------------------------------
  # OPTIONAL VARIABLES
  # ----------------------------------------------------------------------------------------------------

  # A list of additional principals who can assume the task and task execution roles
  additional_task_assume_role_policy_principals = []

  # The time period, in seconds, during which requests from a client should be
  # routed to the same Target. After this time period expires, the load
  # balancer-generated cookie is considered stale. The acceptable range is 1 second
  # to 1 week (604800 seconds). The default value is 1 day (86400 seconds). Only
  # used if var.elb_target_group_name is set.
  alb_sticky_session_cookie_duration = 86400

  # The type of Sticky Sessions to use. See https://goo.gl/MNwqNu for possible
  # values. Only used if var.elb_target_group_name is set.
  alb_sticky_session_type = "lb_cookie"

  # The capacity provider strategy to use for the service. Note that the capacity
  # providers have to be present on ECS cluster before deploying ECS service. When
  # provided, var.launch_type is ignored.
  capacity_provider_strategy = []

  # The name of the container, as it appears in the var.task_arn Task definition, to
  # associate with a CLB. Currently, ECS can only associate a CLB with a single
  # container per service. Only used if clb_name is set.
  clb_container_name = null

  # The port on the container in var.clb_container_name to associate with an CLB.
  # Currently, ECS can only associate a CLB with a single container per service.
  # Only used if clb_name is set.
  clb_container_port = null

  # The name of a Classic Load Balancer (CLB) to associate with this service.
  # Containers in the service will automatically register with the CLB when booting
  # up. Set to null if using ELBv2.
  clb_name = null

  # Custom name to use for the ECS service IAM role that is created. Note that this
  # service IAM role is only needed when the ECS service is being used with an ELB.
  # If blank (default), the name will be set to var.service_name.
  custom_ecs_service_role_name = null

  # Prefix for name of the IAM role used by the ECS task. If not provide, will be
  # set to var.service_name.
  custom_iam_role_name_prefix = null

  # Prefix for name of task execution IAM role and policy that grants access to
  # CloudWatch and ECR. If not provide, will be set to var.service_name.
  custom_task_execution_name_prefix = null

  # Create a dependency between the resources in this module to the interpolated
  # values in this list (and thus the source resources). In other words, the
  # resources in this module will now depend on the resources backing the values in
  # this list such that those resources need to be created before the resources in
  # this module, and the resources in this module need to be destroyed before the
  # resources in the list.
  dependencies = []

  # Set the logging level of the deployment check script. You can set this to
  # `error`, `warn`, or `info`, in increasing verbosity.
  deployment_check_loglevel = "info"

  # Seconds to wait before timing out each check for verifying ECS service
  # deployment. See ecs_deploy_check_binaries for more details.
  deployment_check_timeout_seconds = 600

  # Set enable to 'true' to prevent the task from attempting to continuously
  # redeploy after a failed health check. Set rollback to 'true' to also
  # automatically roll back to the last successful deployment. If this setting is
  # used, both 'enable' and 'rollback' are required fields.
  deployment_circuit_breaker = null

  # Type of deployment controller, possible values: CODE_DEPLOY, ECS, EXTERNAL
  deployment_controller = null

  # The upper limit, as a percentage of var.desired_number_of_tasks, of the number
  # of running tasks that can be running in a service during a deployment. Setting
  # this to more than 100 means that during deployment, ECS will deploy new
  # instances of a Task before undeploying the old ones.
  deployment_maximum_percent = 200

  # The lower limit, as a percentage of var.desired_number_of_tasks, of the number
  # of running tasks that must remain running and healthy in a service during a
  # deployment. Setting this to less than 100 means that during deployment, ECS may
  # undeploy old instances of a Task before deploying new ones.
  deployment_minimum_healthy_percent = 100

  # How many Tasks to run of the var.ecs_task_definition_canary to deploy for a
  # canary deployment. Typically, only 0 or 1 should be used.
  desired_number_of_canary_tasks_to_run = 0

  # Check alias target health before routing to the service. Only used if
  # var.discovery_use_public_dns is true.
  discovery_alias_record_evaluate_target_health = true

  # The number of 30-second intervals that you want service discovery to wait before
  # it changes the health status of a service instance. Maximum value of 10. Only
  # used if var.use_service_discovery is true.
  discovery_custom_health_check_failure_threshold = 1

  # The routing policy that you want to apply to all records that Route 53 creates
  # when you register an instance and specify the service. Valid Values: MULTIVALUE,
  # WEIGHTED. Only used if var.use_service_discovery is true.
  discovery_dns_routing_policy = "MULTIVALUE"

  # The amount of time, in seconds, that you want DNS resolvers to cache the
  # settings for this resource record set. Only used if var.use_service_discovery is
  # true.
  discovery_dns_ttl = 60

  # The name by which the service can be discovered. It will be used to form the
  # service discovery address along with the namespace name in
  # <discovery_name>.<namespace_name>. So if your discovery name is 'my-service' and
  # your namespace name is 'my-company-staging.local', the hostname for the service
  # will be 'my-service.my-company-staging.local'. Only used if
  # var.use_service_discovery is true.
  discovery_name = null

  # The id of the previously created namespace for service discovery. It will be
  # used to form the service discovery address along with the discovery name in
  # <discovery_name>.<namespace_name>. So if your discovery name is 'my-service' and
  # your namespace name is 'my-company-staging.local', the hostname for the service
  # will be 'my-service.my-company-staging.local'. Only used if
  # var.use_service_discovery is true.
  discovery_namespace_id = null

  # The ID of the original Route 53 Hosted Zone where associated with the domain
  # registrar. Only used if var.discovery_use_public_dns is true.
  discovery_original_public_route53_zone_id = null

  # The ID of the new Route 53 Hosted Zone created for the public DNS namespace.
  # Only used if var.discovery_use_public_dns is true.
  discovery_public_dns_namespace_route53_zone_id = null

  # Set this variable to 'true' when using public DNS namespaces. Only used if
  # var.use_service_discovery is true.
  discovery_use_public_dns = false

  # The configuration to use when setting up the VPC network mode. Required and only
  # used if ecs_task_definition_network_mode is awsvpc.
  ecs_service_network_configuration = null

  # The JSON text of the ECS Task Definition to be run for the canary. This defines
  # the Docker container(s) to be run along with all their properties. It should
  # adhere to the format described at https://goo.gl/ob5U3g.
  ecs_task_definition_canary = "[{ \"name\":\"not-used\" }]"

  # The Docker networking mode to use for the containers in the task. The valid
  # values are none, bridge, awsvpc, and host
  ecs_task_definition_network_mode = "bridge"

  # (Optional) A map of EFS volumes that containers in your task may use. Each item
  # in the list should be a map compatible with
  # https://www.terraform.io/docs/providers/aws/r/ecs_task_definition.html#efs-volum
  # -configuration-arguments.
  efs_volumes = {}

  # The ARN of the policy that is used to set the permissions boundary for the IAM
  # role for the ELB.
  elb_role_permissions_boundary_arn = null

  # The amount time for targets to warm up before the load balancer sends them a
  # full share of requests. The range is 30-900 seconds or 0 to disable. The default
  # value is 0 seconds. Only used if var.elb_target_group_name is set.
  elb_slow_start = 0

  # The amount of time for Elastic Load Balancing to wait before changing the state
  # of a deregistering target from draining to unused. The range is 0-3600 seconds.
  # Only used if var.elb_target_group_name is set.
  elb_target_group_deregistration_delay = 300

  # The ID of the VPC in which to create the target group. Only used if
  # var.elb_target_group_name is set.
  elb_target_group_vpc_id = null

  # Configurations for ELB target groups for ALBs and NLBs that should be associated
  # with the ECS Tasks. Each entry corresponds to a separate target group. Set to
  # the empty object ({}) if you are not using an ALB or NLB.
  elb_target_groups = {}

  # Whether or not to enable the ECS deployment check binary to make terraform wait
  # for the task to be deployed. See ecs_deploy_check_binaries for more details. You
  # must install the companion binary before the check can be used. Refer to the
  # README for more details.
  enable_ecs_deployment_check = true

  # Specifies whether to enable Amazon ECS Exec for the tasks within the service.
  enable_execute_command = false

  # The name of the existing task execution role to be used in place of creating a
  # new role.
  existing_ecs_task_execution_role_name = null

  # The name of the existing task role to be used in place of creating a new role.
  existing_ecs_task_role_name = null

  # If true, enable health checks on the target group. Only applies to ELBv2. For
  # CLBs, health checks are not configurable.
  health_check_enabled = true

  # Seconds to ignore failing load balancer health checks on newly instantiated
  # tasks to prevent premature shutdown, up to 2,147,483,647. Only valid for
  # services configured to use load balancers.
  health_check_grace_period_seconds = 0

  # The number of consecutive successful health checks required before considering
  # an unhealthy Target healthy. The acceptable range is 2 to 10.
  health_check_healthy_threshold = 5

  # The approximate amount of time, in seconds, between health checks of an
  # individual Target. Minimum value 5 seconds, Maximum value 300 seconds.
  health_check_interval = 30

  # The HTTP codes to use when checking for a successful response from a Target. You
  # can specify multiple values (e.g. '200,202') or a range of values (e.g.
  # '200-299'). Required when using ALBs.
  health_check_matcher = "200"

  # The ping path that is the destination on the Targets for health checks. Required
  # when using ALBs.
  health_check_path = "/"

  # The port the ELB uses when performing health checks on Targets. The default is
  # to use the port on which each target receives traffic from the load balancer,
  # indicated by the value 'traffic-port'.
  health_check_port = "traffic-port"

  # The amount of time, in seconds, during which no response from a Target means a
  # failed health check. The acceptable range is 2 to 60 seconds.
  health_check_timeout = 5

  # The number of consecutive failed health checks required before considering a
  # target unhealthy. The acceptable range is 2 to 10. For NLBs, this value must be
  # the same as the health_check_healthy_threshold.
  health_check_unhealthy_threshold = 2

  # The launch type of the ECS service. Must be one of EC2 or FARGATE. When using
  # FARGATE, you must set the network mode to awsvpc and configure it. When using
  # EC2, you can configure the placement strategy using the variables
  # placement_strategy_type, placement_strategy_field, placement_constraint_type,
  # placement_constraint_expression. This variable is ignored if
  # var.capacity_provider_strategy is provided.
  launch_type = "EC2"

  # A map of tags to apply to the elb target group. Each item in this list should be
  # a map with the parameters key and value.
  lb_target_group_tags = {}

  # Listener rules list required first to be provisioned before creation of ECS
  # cluster.
  listener_rule_ids = []

  # The maximum number of ECS Task instances of the ECS Service to run. Auto scaling
  # will never scale out above this number. Must be set when var.use_auto_scaling is
  # true.
  max_number_of_tasks = null

  # The minimum number of ECS Task instances of the ECS Service to run. Auto scaling
  # will never scale in below this number. Must be set when var.use_auto_scaling is
  # true.
  min_number_of_tasks = null

  placement_constraint_expression = "attribute:ecs.ami-id != 'ami-fake'"

  placement_constraint_type = "memberOf"

  placement_strategy_field = "cpu"

  placement_strategy_type = "binpack"

  # The platform version on which to run your service. Only applicable for
  # launch_type set to FARGATE. Defaults to LATEST.
  platform_version = null

  # Whether tags should be propogated to the tasks from the service or from the task
  # definition. Valid values are SERVICE and TASK_DEFINITION. Defaults to SERVICE.
  # If set to null, no tags are created for tasks.
  propagate_tags = "SERVICE"

  # Configuration block for the App Mesh proxy. The only supported value for `type`
  # is "APPMESH". Use the name of the Envoy proxy container from
  # `container_definitions` as the `container_name`. `properties` is a map of
  # network configuration parameters to provide the Container Network Interface
  # (CNI) plugin.
  proxy_configuration = null

  # Define runtime platform options
  runtime_platform = null

  # A map of tags to apply to the ECS service. Each item in this list should be a
  # map with the parameters key and value.
  service_tags = {}

  # The CPU units for the instances that Fargate will spin up. Options here:
  # https://docs.aws.amazon.com/AmazonECS/latest/developerguide/AWS_Fargate.html#far
  # ate-tasks-size. Required when using FARGATE launch type.
  task_cpu = null

  # A map of tags to apply to the task definition. Each item in this list should be
  # a map with the parameters key and value.
  task_definition_tags = {}

  # The ARN of the policy that is used to set the permissions boundary for the IAM
  # role for the ECS task execution.
  task_execution_role_permissions_boundary_arn = null

  # The memory units for the instances that Fargate will spin up. Options here:
  # https://docs.aws.amazon.com/AmazonECS/latest/developerguide/AWS_Fargate.html#far
  # ate-tasks-size. Required when using FARGATE launch type.
  task_memory = null

  # The ARN of the policy that is used to set the permissions boundary for the IAM
  # role for the ECS task.
  task_role_permissions_boundary_arn = null

  # If true, the ALB will use use Sticky Sessions as described at
  # https://goo.gl/VLcNbk. Only used if var.elb_target_group_name is set. Note that
  # this can only be true when associating with an ALB. This cannot be used with
  # CLBs or NLBs.
  use_alb_sticky_sessions = false

  # Set this variable to 'true' to tell the ECS service to ignore
  # var.desired_number_of_tasks and instead use auto scaling to determine how many
  # Tasks of this service to run.
  use_auto_scaling = false

  # Set this variable to 'true' to setup service discovery for the ECS service by
  # automatically registering the task IPs to a registry that is created within this
  # module. Currently this is only supported with the 'awsvpc' networking mode.
  use_service_discovery = false

  # (Optional) A map of volume blocks that containers in your task may use. The key
  # should be the name of the volume and the value should be a map compatible with
  # https://www.terraform.io/docs/providers/aws/r/ecs_task_definition.html#volume-bl
  # ck-arguments, but not including the name parameter.
  volumes = {}

  # If true, Terraform will wait for the service to reach a steady state—as in, the
  # ECS tasks you wanted are actually deployed—before 'apply' is considered
  # complete.
  wait_for_steady_state = false

}

terraform.tfvars

# Coming soon!

Reference

Inputs
Outputs

Required

desired_number_of_tasksnumberrequired

How many copies of the Task to run across the cluster.

ecs_cluster_arnstringrequired

The Amazon Resource Name (ARN) of the ECS Cluster where this service should run.

ecs_task_container_definitionsstringrequired

The JSON text of the ECS Task Container Definitions. This portion of the ECS Task Definition defines the Docker container(s) to be run along with all their properties. It should adhere to the format described at https://goo.gl/ob5U3g.

service_namestringrequired

The name of the service. This is used to namespace all resources created by this module.

Optional

additional_task_assume_role_policy_principalslist(string)optional

A list of additional principals who can assume the task and task execution roles

Default:[]

alb_sticky_session_cookie_durationnumberoptional

The time period, in seconds, during which requests from a client should be routed to the same Target. After this time period expires, the load balancer-generated cookie is considered stale. The acceptable range is 1 second to 1 week (604800 seconds). The default value is 1 day (86400 seconds). Only used if elb_target_group_name is set.

Default:86400

alb_sticky_session_typestringoptional

The type of Sticky Sessions to use. See https://goo.gl/MNwqNu for possible values. Only used if elb_target_group_name is set.

Default:"lb_cookie"

capacity_provider_strategylist(object(…))optional

The capacity provider strategy to use for the service. Note that the capacity providers have to be present on ECS cluster before deploying ECS service. When provided, launch_type is ignored.

Type Details

list(object({
    capacity_provider = string
    weight            = number
    base              = number
  }))

Default:[]

Examples

Example

   capacity_provider_strategy = [
      {
        capacity_provider = "FARGATE"
        weight            = 1
        base              = 2
      },
      {
        capacity_provider = "FARGATE_SPOT"
        weight            = 2
        base              = null
      },
   ]

clb_container_namestringoptional

The name of the container, as it appears in the task_arn Task definition, to associate with a CLB. Currently, ECS can only associate a CLB with a single container per service. Only used if clb_name is set.

Default:null

clb_container_portnumberoptional

The port on the container in clb_container_name to associate with an CLB. Currently, ECS can only associate a CLB with a single container per service. Only used if clb_name is set.

Default:null

clb_namestringoptional

The name of a Classic Load Balancer (CLB) to associate with this service. Containers in the service will automatically register with the CLB when booting up. Set to null if using ELBv2.

Default:null

custom_ecs_service_role_namestringoptional

Custom name to use for the ECS service IAM role that is created. Note that this service IAM role is only needed when the ECS service is being used with an ELB. If blank (default), the name will be set to service_name.

Default:null

custom_iam_role_name_prefixstringoptional

Prefix for name of the IAM role used by the ECS task. If not provide, will be set to service_name.

Default:null

custom_task_execution_name_prefixstringoptional

Prefix for name of task execution IAM role and policy that grants access to CloudWatch and ECR. If not provide, will be set to service_name.

Default:null

dependencieslist(string)optional

Create a dependency between the resources in this module to the interpolated values in this list (and thus the source resources). In other words, the resources in this module will now depend on the resources backing the values in this list such that those resources need to be created before the resources in this module, and the resources in this module need to be destroyed before the resources in the list.

Default:[]

deployment_check_loglevelstringoptional

Set the logging level of the deployment check script. You can set this to error, warn, or info, in increasing verbosity.

Default:"info"

deployment_check_timeout_secondsnumberoptional

Seconds to wait before timing out each check for verifying ECS service deployment. See ecs_deploy_check_binaries for more details.

Default:600

deployment_circuit_breakerobject(…)optional

Set enable to 'true' to prevent the task from attempting to continuously redeploy after a failed health check. Set rollback to 'true' to also automatically roll back to the last successful deployment. If this setting is used, both 'enable' and 'rollback' are required fields.

Type Details

object({
    enable   = bool
    rollback = bool
  })

Default:null

deployment_controllerstringoptional

Type of deployment controller, possible values: CODE_DEPLOY, ECS, EXTERNAL

Default:null

deployment_maximum_percentnumberoptional

The upper limit, as a percentage of desired_number_of_tasks, of the number of running tasks that can be running in a service during a deployment. Setting this to more than 100 means that during deployment, ECS will deploy new instances of a Task before undeploying the old ones.

Default:200

deployment_minimum_healthy_percentnumberoptional

The lower limit, as a percentage of desired_number_of_tasks, of the number of running tasks that must remain running and healthy in a service during a deployment. Setting this to less than 100 means that during deployment, ECS may undeploy old instances of a Task before deploying new ones.

Default:100

desired_number_of_canary_tasks_to_runnumberoptional

How many Tasks to run of the ecs_task_definition_canary to deploy for a canary deployment. Typically, only 0 or 1 should be used.

Default:0

discovery_alias_record_evaluate_target_healthbooloptional

Check alias target health before routing to the service. Only used if discovery_use_public_dns is true.

Default:true

discovery_custom_health_check_failure_thresholdnumberoptional

The number of 30-second intervals that you want service discovery to wait before it changes the health status of a service instance. Maximum value of 10. Only used if use_service_discovery is true.

Default:1

discovery_dns_routing_policystringoptional

The routing policy that you want to apply to all records that Route 53 creates when you register an instance and specify the service. Valid Values: MULTIVALUE, WEIGHTED. Only used if use_service_discovery is true.

Default:"MULTIVALUE"

discovery_dns_ttlnumberoptional

The amount of time, in seconds, that you want DNS resolvers to cache the settings for this resource record set. Only used if use_service_discovery is true.

Default:60

discovery_namestringoptional

The name by which the service can be discovered. It will be used to form the service discovery address along with the namespace name in <discovery_name>.<namespace_name>. So if your discovery name is 'my-service' and your namespace name is 'my-company-staging.local', the hostname for the service will be 'my-service.my-company-staging.local'. Only used if use_service_discovery is true.

Default:null

discovery_namespace_idstringoptional

The id of the previously created namespace for service discovery. It will be used to form the service discovery address along with the discovery name in <discovery_name>.<namespace_name>. So if your discovery name is 'my-service' and your namespace name is 'my-company-staging.local', the hostname for the service will be 'my-service.my-company-staging.local'. Only used if use_service_discovery is true.

Default:null

discovery_original_public_route53_zone_idstringoptional

The ID of the original Route 53 Hosted Zone where associated with the domain registrar. Only used if discovery_use_public_dns is true.

Default:null

discovery_public_dns_namespace_route53_zone_idstringoptional

The ID of the new Route 53 Hosted Zone created for the public DNS namespace. Only used if discovery_use_public_dns is true.

Default:null

discovery_use_public_dnsbooloptional

Set this variable to 'true' when using public DNS namespaces. Only used if use_service_discovery is true.

Default:false

ecs_service_network_configurationobject(…)optional

The configuration to use when setting up the VPC network mode. Required and only used if ecs_task_definition_network_mode is awsvpc.

Type Details

object({
    subnets          = list(string)
    security_groups  = list(string)
    assign_public_ip = bool
  })

Default:null

ecs_task_definition_canarystringoptional

The JSON text of the ECS Task Definition to be run for the canary. This defines the Docker container(s) to be run along with all their properties. It should adhere to the format described at https://goo.gl/ob5U3g.

Default:"[{ "name":"not-used" }]"

ecs_task_definition_network_modestringoptional

The Docker networking mode to use for the containers in the task. The valid values are none, bridge, awsvpc, and host

Default:"bridge"

efs_volumesmap(object(…))optional

(Optional) A map of EFS volumes that containers in your task may use. Each item in the list should be a map compatible with https://www.terraform.io/docs/providers/aws/r/ecs_task_definition.html#efs-volume-configuration-arguments.

Type Details

map(object({
    file_system_id          = string # required
    container_path          = string # required
    root_directory          = string
    transit_encryption      = string
    transit_encryption_port = number
    access_point_id         = string
    iam                     = string
  }))

Default:{}

Examples

Example

   efs_volumes = {
     jenkins = {
       file_system_id          = "fs-a1bc234d"
       container_path          = "/efs"
       root_directory          = "/jenkins"
       transit_encryption      = "ENABLED"
       transit_encryption_port = 2999
       access_point_id         = "fsap-123a4b5c5d7891234"
       iam                     = "ENABLED"
     }
   }

elb_role_permissions_boundary_arnstringoptional

The ARN of the policy that is used to set the permissions boundary for the IAM role for the ELB.

Default:null

elb_slow_startnumberoptional

The amount time for targets to warm up before the load balancer sends them a full share of requests. The range is 30-900 seconds or 0 to disable. The default value is 0 seconds. Only used if elb_target_group_name is set.

Default:0

elb_target_group_deregistration_delaynumberoptional

The amount of time for Elastic Load Balancing to wait before changing the state of a deregistering target from draining to unused. The range is 0-3600 seconds. Only used if elb_target_group_name is set.

Default:300

elb_target_group_vpc_idstringoptional

The ID of the VPC in which to create the target group. Only used if elb_target_group_name is set.

Default:null

elb_target_groupsanyoptional

Configurations for ELB target groups for ALBs and NLBs that should be associated with the ECS Tasks. Each entry corresponds to a separate target group. Set to the empty object ({}) if you are not using an ALB or NLB.

Type Details

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.

Default:{}

More Details

Details

   `elb_target_groups` should be set to a map of keys to objects with one mapping per desired target group. The keys
   in the map can be any arbitrary name and are used to link the outputs with the inputs. The values of the map are an
   object containing these attributes:

enable_ecs_deployment_checkbooloptional

Whether or not to enable the ECS deployment check binary to make terraform wait for the task to be deployed. See ecs_deploy_check_binaries for more details. You must install the companion binary before the check can be used. Refer to the README for more details.

Default:true

enable_execute_commandbooloptional

Specifies whether to enable Amazon ECS Exec for the tasks within the service.

Default:false

existing_ecs_task_execution_role_nameoptional

The name of the existing task execution role to be used in place of creating a new role.

Default:null

existing_ecs_task_role_nameoptional

The name of the existing task role to be used in place of creating a new role.

Default:null

health_check_enabledbooloptional

If true, enable health checks on the target group. Only applies to ELBv2. For CLBs, health checks are not configurable.

Default:true

health_check_grace_period_secondsnumberoptional

Seconds to ignore failing load balancer health checks on newly instantiated tasks to prevent premature shutdown, up to 2,147,483,647. Only valid for services configured to use load balancers.

Default:0

health_check_healthy_thresholdnumberoptional

The number of consecutive successful health checks required before considering an unhealthy Target healthy. The acceptable range is 2 to 10.

Default:5

health_check_intervalnumberoptional

The approximate amount of time, in seconds, between health checks of an individual Target. Minimum value 5 seconds, Maximum value 300 seconds.

Default:30

health_check_matcherstringoptional

The HTTP codes to use when checking for a successful response from a Target. You can specify multiple values (e.g. '200,202') or a range of values (e.g. '200-299'). Required when using ALBs.

Default:"200"

health_check_pathstringoptional

The ping path that is the destination on the Targets for health checks. Required when using ALBs.

Default:"/"

health_check_portstringoptional

The port the ELB uses when performing health checks on Targets. The default is to use the port on which each target receives traffic from the load balancer, indicated by the value 'traffic-port'.

Default:"traffic-port"

health_check_timeoutnumberoptional

The amount of time, in seconds, during which no response from a Target means a failed health check. The acceptable range is 2 to 60 seconds.

Default:5

health_check_unhealthy_thresholdnumberoptional

The number of consecutive failed health checks required before considering a target unhealthy. The acceptable range is 2 to 10. For NLBs, this value must be the same as the health_check_healthy_threshold.

Default:2

launch_typestringoptional

The launch type of the ECS service. Must be one of EC2 or FARGATE. When using FARGATE, you must set the network mode to awsvpc and configure it. When using EC2, you can configure the placement strategy using the variables placement_strategy_type, placement_strategy_field, placement_constraint_type, placement_constraint_expression. This variable is ignored if capacity_provider_strategy is provided.

Default:"EC2"

lb_target_group_tagsmap(string)optional

A map of tags to apply to the elb target group. Each item in this list should be a map with the parameters key and value.

Default:{}

listener_rule_idslist(string)optional

Listener rules list required first to be provisioned before creation of ECS cluster.

Default:[]

max_number_of_tasksnumberoptional

The maximum number of ECS Task instances of the ECS Service to run. Auto scaling will never scale out above this number. Must be set when use_auto_scaling is true.

Default:null

min_number_of_tasksnumberoptional

The minimum number of ECS Task instances of the ECS Service to run. Auto scaling will never scale in below this number. Must be set when use_auto_scaling is true.

Default:null

placement_constraint_expressionstringoptional

Default:"attribute:ecs.ami-id != 'ami-fake'"

placement_constraint_typestringoptional

Default:"memberOf"

placement_strategy_fieldstringoptional

Default:"cpu"

placement_strategy_typestringoptional

Default:"binpack"

platform_versionstringoptional

The platform version on which to run your service. Only applicable for launch_type set to FARGATE. Defaults to LATEST.

Default:null

propagate_tagsstringoptional

Whether tags should be propogated to the tasks from the service or from the task definition. Valid values are SERVICE and TASK_DEFINITION. Defaults to SERVICE. If set to null, no tags are created for tasks.

Default:"SERVICE"

proxy_configurationobject(…)optional

Configuration block for the App Mesh proxy. The only supported value for type is 'APPMESH'. Use the name of the Envoy proxy container from container_definitions as the container_name. properties is a map of network configuration parameters to provide the Container Network Interface (CNI) plugin.

Type Details

object({
    type           = string
    container_name = string
    properties     = map(string)
  })

Default:null

Examples

Example

   proxy_configuration = {
     type           = "APPMESH"
     container_name = "applicationContainerName"
     properties = {
       AppPorts         = "8080"
       EgressIgnoredIPs = "169.254.170.2,169.254.169.254"
       IgnoredUID       = "1337"
       ProxyEgressPort  = 15001
       ProxyIngressPort = 15000
     }
   }

runtime_platformobject(…)optional

Define runtime platform options

Type Details

object({
    operating_system_family = string
    cpu_architecture        = string
  })

Default:null

service_tagsmap(string)optional

A map of tags to apply to the ECS service. Each item in this list should be a map with the parameters key and value.

Default:{}

task_cpunumberoptional

The CPU units for the instances that Fargate will spin up. Options here: https://docs.aws.amazon.com/AmazonECS/latest/developerguide/AWS_Fargate.html#fargate-tasks-size. Required when using FARGATE launch type.

Default:null

task_definition_tagsmap(string)optional

A map of tags to apply to the task definition. Each item in this list should be a map with the parameters key and value.

Default:{}

task_execution_role_permissions_boundary_arnstringoptional

The ARN of the policy that is used to set the permissions boundary for the IAM role for the ECS task execution.

Default:null

task_memorynumberoptional

The memory units for the instances that Fargate will spin up. Options here: https://docs.aws.amazon.com/AmazonECS/latest/developerguide/AWS_Fargate.html#fargate-tasks-size. Required when using FARGATE launch type.

Default:null

task_role_permissions_boundary_arnstringoptional

The ARN of the policy that is used to set the permissions boundary for the IAM role for the ECS task.

Default:null

use_alb_sticky_sessionsbooloptional

If true, the ALB will use use Sticky Sessions as described at https://goo.gl/VLcNbk. Only used if elb_target_group_name is set. Note that this can only be true when associating with an ALB. This cannot be used with CLBs or NLBs.

Default:false

use_auto_scalingbooloptional

Set this variable to 'true' to tell the ECS service to ignore desired_number_of_tasks and instead use auto scaling to determine how many Tasks of this service to run.

Default:false

use_service_discoverybooloptional

Set this variable to 'true' to setup service discovery for the ECS service by automatically registering the task IPs to a registry that is created within this module. Currently this is only supported with the 'awsvpc' networking mode.

Default:false

volumesanyoptional

(Optional) A map of volume blocks that containers in your task may use. The key should be the name of the volume and the value should be a map compatible with https://www.terraform.io/docs/providers/aws/r/ecs_task_definition.html#volume-block-arguments, but not including the name parameter.

Type Details

Any types represent complex values of variable type. For details, please consult `variables.tf` in the source repo.

Default:{}

Examples

Example

   volumes = {
     datadog = {
       host_path = "/var/run/datadog"
     }

     logs = {
       host_path = "/var/log"
       docker_volume_configuration = {
         scope         = "shared"
         autoprovision = true
         driver        = "local"
       }
     }
   }

wait_for_steady_statebooloptional

If true, Terraform will wait for the service to reach a steady state—as in, the ECS tasks you wanted are actually deployed—before 'apply' is considered complete.

Default:false

aws_ecs_task_definition_arn

aws_ecs_task_definition_canary_arn

canary_service_arn

capacity_provider_strategy

ecs_task_execution_iam_role_arn

ecs_task_execution_iam_role_name

ecs_task_iam_role_arn

ecs_task_iam_role_name

service_app_autoscaling_target_arn

service_app_autoscaling_target_resource_id

service_arn
